Brewster F2A Buffalo CARRIER  FIGHTER

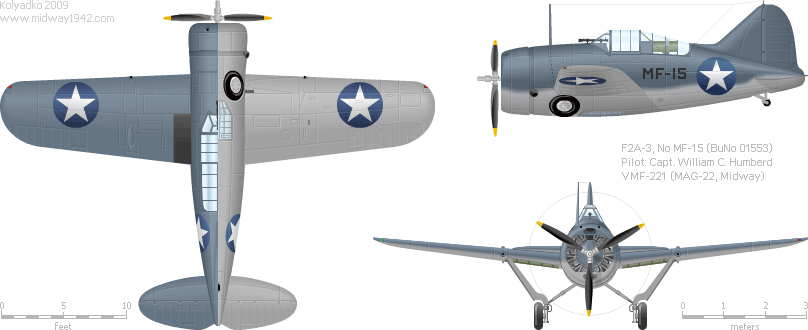

Brewster F2A-3 "Buffalo"
.     . Model F2A-3   .
Length: 26 ft 4 in 8.0 m Power Plant: Wright R-1820-40 Cyclone 9 Fuel Capacity: 160 gal 605 L
Height: 12 ft 3.65 m Military Power: 1200 hp 895 kW Combat Range: 840 nm 1550 km
Wingspan: 35 ft 10.6 m Power/Weight: 0.19 hp/lg 0.42 hp/kg Service Ceiling: 33,200 ft 10 120 m
Wingarea: 209 sq ft 19.4 m² Speed, SL: 252 kts 467 km/h Nose Guns: 2 × .50 (12.7 mm), 750 rds *
Empty Weight: 4,732 lb 2146 kg Max Speed: 278 kts 515 km/h Wing Guns: 2 × .50 (12.7 mm), 450 rds
Gross Weight: 6,321 lb 2867 kg Cruise Speed: 140 kts 259 km/h Salvo Weight: 3.66 lb/sec 1.66 kg/sec
Wing Loading: 30 lb/ft² 147.8 kg/m² Rate of Climb: 2,290 ft/min 698 m/min Bomb Load: 2×100 lb (45.4 kg)
. * Allowance of ammunition, rounds per gun.
