Atlanta class LIGHT CRUISERS

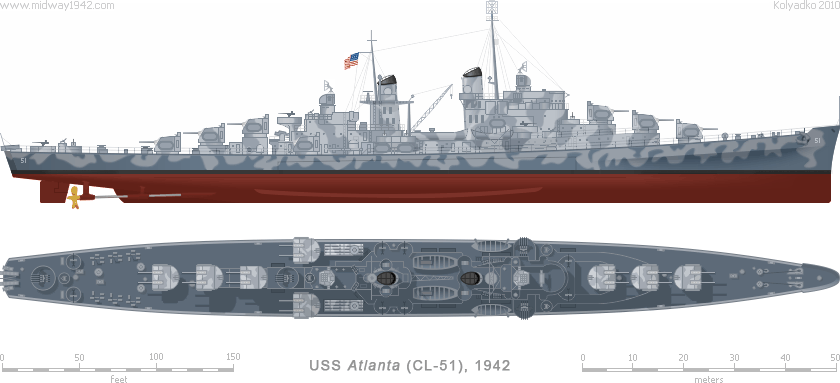

USN Light Cruiser CL-51 "Atlanta"
Displacement: 8,340 t (6,718 t Std)Machinery: 4 boilers, 2 shafts  DP Guns: 8×2×5 in (127 mm)/38* Main Belt: 3.5-1.1 in 89-28 mm
Max Length: 541 ft 0 in 164.9 mMax Power: 75,000 hp 55 162 kW AA Guns: 4×4×1.1 in (28 mm)** Decks: 1.25 in 32 mm
Beam: 52 ft 10 in 16.1 mMax Speed: 33.6 kts 62.23 km/h AA Guns: 8×1×.79 in (20 mm)** Barbettes: 1.5 in 38 mm
Draght: 20 ft 6 in 6.25 mRange: 4,000 nm 7 400 km Torpedo Battery: 2×4×21 in (553 mm) Turrets: 1.25 in 32 mm
Complement: 673 officers and enlisted Bunkerage: 1,528 t fuel oil Depth Charges: 2 roller racks, 6 throwers CTower: 2.5 in 64 mm

  * First four ships of the class, subsequent ships - 6×2×5 in (127 mm)/38, ** Antiaircraft armament as during the Battle of Midway (June 1942).

Atlanta class light cruisers was far more closely related to a very large destroyers than a light cruisers. They were designed as small, fast scout cruisers that could operate as destroyer flotilia leaders covering the destroyers against enemy surface and air attack while the destroyers carry out a torpedo attack against enemy capital ships. But in common with many other cruisers, the Atlantas were sometimes used for different functions from those for which they were designed. As a result, two of them were sunk by Japanese cruisers and destroyers while formed up in a battle line of larger U.S. cruisers off Guadalcanal.

The ships had a main armament of relatively light guns, but in great numbers: sixteen of the 5 in (127 mm) dual-purpose guns in eight twin turrets, four of the new four-barrel 1.1 in (28 mm) autocannons were also fitted for close-in anti-aircraft defense. Unlike most U.S. cruisers of the period they were equipped with torpedo tubes, depth charges and sonars, reflecting their destroyer-like mission. Atlanta class light cruisers were most successful as anti-aircraft ships, so during WWII their close-in anti-aircraft armament was drastically increased up to twenty-four (or even thirty-six) 1.57 in (40 mm) Bofors and sixteen .79 in (20 mm) Oerlikon autocannons at the cost of removing two wing 5 in (127 mm) turrets and all torpedo tubes.

One Atlanta class light cruiser (CL-51 Atlanta) took part in the Battle of Midway as a part of Task Force 16 Cruiser Group (Task Group 16.2).



Ship Builder Laid Down    Launched    Commisioned    Fate
 CL-51 Atlanta Federal Shipbuilding. Kearny, NJ 22 Apr 1940       6 Sep 1941     24 Dec 1941     Sunk in action 13 Nov 1942
 CL-52 Juneau Federal Shipbuilding. Kearny, NJ 27 May 1940   25 Oct 1941   14 Feb 1942   Sunk in action 13 Nov 1942
 CL-53 San Diego  Bethlehem Steel. Quincy, MA 27 Mar 1940   26 Jul 1941   10 Jan 1942   Sold for scrap   3 Feb 1960
 CL-54 San Juan Bethlehem Steel. Quincy, MA 15 May 1940     6 Sep 1941   28 Feb 1942   Sold for scrap 31 Oct 1961
 CL-95 Oakland Bethlehem Shipbuilding. CA 14 Jun 1941   23 Oct 1942   17 Jul 1943   Sold for scrap   1 Dec 1959
 CL-96 Reno Bethlehem Shipbuilding. CA   1 Aug 1941   23 Dec 1942   29 Dec 1943   Sold for scrap 22 Mar 1962
 CL-97 Flint Bethlehem Shipbuilding. CA 23 Oct 1941   25 Jun 1944   31 Aug 1944   Sold for scrap   6 Oct 1966
 CL-98 Tucson Bethlehem Shipbuilding. CA 23 Dec 1942     2 Sep 1944     3 Feb 1945   Sold for scrap 24 Feb 1971
 CL-119   Juneau Federal Shipbuilding. Kearny, NJ 19 Sep 1944   15 Jul 1945   15 Feb 1946   Sold for scrap 29 Apr 1960
 CL-120 Spokane Federal Shipbuilding. Kearny, NJ 15 Nov 1944   22 Sep 1945   17 May 1946   Sold for scrap 17 May 1973
 CL-121 Fresno Federal Shipbuilding. Kearny, NJ 12 Feb 1945   5 Mar 1946   27 Oct 1946   Sold for scrap 17 Jun 1966
