Sims class DESTROYERS

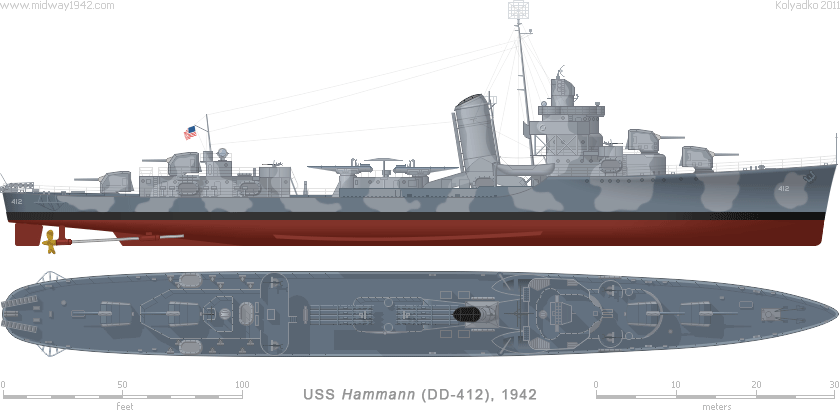

USN Destroyer DD-412 "Hammann"
Displacement: 2,293 t (1,620 t Std)Machinery: 3 boilers, 2 shafts  DP Guns: 4×1×5 in (127 mm)/38
Max Length: 348 ft 3 in 106.1 mMax Power: 50,000 hp 36 775 kW AA Guns: 4×1×.79 in (20 mm)
Beam: 36 ft 1 in 11.0 mMax Speed: 38.5 kts 71.3 km/h Torpedo Battery: 2×4×21 in (533 mm)
Draght: 12 ft 8 in 3.9 m Range: 6,500 nm 12 000 km Depth Charges: 2 roller racks, 12 throwers
Complement: 251 officers and enlisted Bunkerage: 460 t fuel oil Sensors: Surface and air radars, sonar

  * Armament as during the Battle of Midway (June 1942).

Twelve Sims class ships were the sixth and final class of the “third-generation” 1500-ton pre-war destroyers that modernized the U.S. Navy in the 1930s. The destroyers were also the last of the single stack designs, and the last class completed before the United States entered World War II.

As initially designed, the Sims class emphasized surface combat capabilities, with three 21 in (533 mm) quadruple torpedo mounts (two on the beam and one centerline) and five 5 in (127 mm) double purpose guns. But the first Sims class ships were found to be significantly overweight and top-heavy, so the two beam torpedo mounts were replaced by one centerline mount to improve stability. It quickly became obvious that the destroyers also needed more anti-submarine and anti-aircraft capabilities. This necessitated further reductions in top weight, accomplished by removing no. 3 gun mount and some other equipment to accomodate additional K-type depth charge throwers and an enhanced AA fit, four single .79 in (20 mm) Oerlikon autocannons in lieu of the .50 in (12.7 mm) machine guns.

Five Sims class destroyers (DD-410 Hughes, DD-411 Anderson, DD-412 Hammann, DD-414 Russell, DD-417 Morris) took part in the Battle of Midway as Task Force 17 Destroyer Screen (Task Group 17.4).



Ship Builder Laid Down    Launched    Commisioned    Fate
 DD-409  Sims Bath Iron Works Corp. Bath, ME 15 Jul 1937     8 Apr 1939     1 Aug 1939   Sunk in action   7 May 1942
 DD-410 Hughes Bath Iron Works Corp. Bath, ME 15 Sep 1937   17 Jun 1939   21 Sep 1939   Sunk as target 16 Oct 1948
 DD-411 Anderson  Federal Shipbuilding. Kearny, NJ 15 Nov 1937     4 Feb 1939   19 May 1939   Sunk as target   1 Jul 1946
 DD-412 Hammann Federal Shipbuilding. Kearny, NJ 17 Jan 1938     4 Feb 1939   11 Aug 1939   Sunk in action   6 Jun 1942
 DD-413 Mustin Newport News Shipbuilding, VA 20 Dec 1937     8 Dec 1938   15 Sep 1939   Sunk as target 18 Apr 1948
 DD-414 Russell Newport News Shipbuilding, VA 20 Dec 1937     8 Dec 1938     3 Nov 1939   Sold for scrap 28 Sep 1947
 DD-415 O'Brien U. S. Navy Yard. Boston, MA 31 May 1938   20 Oct 1939     2 Mar 1940   Sunk in action 19 Oct 1942
 DD-416 Walke U. S. Navy Yard. Boston, MA 31 May 1938   20 Oct 1939   27 Apr 1940   Sunk in action 15 Nov 1942
 DD-417 Morris U. S. Navy Yard. Norfolk, VA   7 Jun 1938     1 Jun 1939     5 Mar 1940   Sold for scrap   2 Aug 1947
 DD-418 Roe U. S. Navy Yard. Charleston, SC 23 Apr 1938   21 Jun 1939     5 Jan 1940   Sold for scrap   1 Aug 1947
 DD-419 Wainwright U. S. Navy Yard. Norfolk, VA   7 Jun 1938     1 Jun 1939   15 Apr 1940   Sunk as target   5 Jul 1948
 DD-420 Buck U. S. Navy Yard. Philadelphia, PA   6 Apr 1938   22 May 1939   15 May 1940   Sunk in action   9 Oct 1943
