Narwhal class SUBMARINES

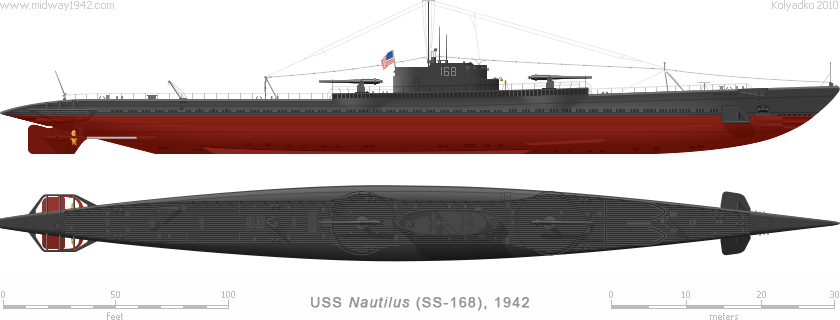

USN Submarine SS-168 "Nautilus"
Displacement: 2,730 t Surf., 3,900 t Sub. Machinery: 4 diesels, 2 electric motors, 2 shafts   Bow Torpedo Tubes: 6×21 in (533 mm)**
Max Length: 371 ft 113 m Power Surf./Sub.: 6,400 / 2,540 hp 4772 / 1900 kW Aft Torpedo Tubes: 4×21 in (533 mm)**
Beam: 33 ft 3 in 10.14 m Speed Surf./Sub.: 14 / 6.5 kts 26 / 12 km/h Torpedoes: 32-36× Mark 14 ***
Draft: 16 ft 11 in 5.16 m Range Surf./Sub.: 9,380 / 50 nm 17 370 / 92.6 km DP Guns: 2×6 in (152 mm)/53
Complement: 97 officers and enlisted Test Depth: 300 ft 91.5 m AA MGs: 1×.30 in (7.62 mm)

  * Specifications after 1942 refit.   ** Including external tubes.   *** Including 8-12 torpedoes carried externally.

Submarines SS-167 Narwhal and SS-168 Nautilus were constituted “submarine cruiser” counterparts at least partially inspired by German success with long-range submarine commerce raiders in World War I. Endurance, sea-keeping, increased torpedo capacity, and large deck guns were emphasized at the cost of high speed. Commissioned in 1930, the submarines emerged as too large and unwieldy for fully successful operation: slow to dive, hard to maneuver, and easy to detect. Early in the war, Narwhal and Nautilus was refitted with new diesels and four additional external torpedo tubes, but due their age and inherent design flaws, they never actually used during the war in the capacity for which they were designed, these submarines were employed primarily to deliver supplies to guerillas, and to transport commandos and coast watchers.

SS-168 Nautilus took part in the Battle of Midway as a part of Task Force 7 Midway Patrol Group (Task Group 7.1) and became the only U.S. submarine engaged the enemy during the battle, although without a success.



Ship Builder Laid Down    Launched    Commisioned    Fate
 SS-167  Narwhal   U. S. Navy Yard. Portsmouth, ME 10 May 1927   17 Dec 1929   15 May 1930   Sold for scrap 19 May 1945
 SS-168 Nautilus   U. S. Navy Yard. Mare Island, CA 10 May 1927   15 Mar 1930    1 Jul 1930   Sold for scrap 16 Nov 1945
